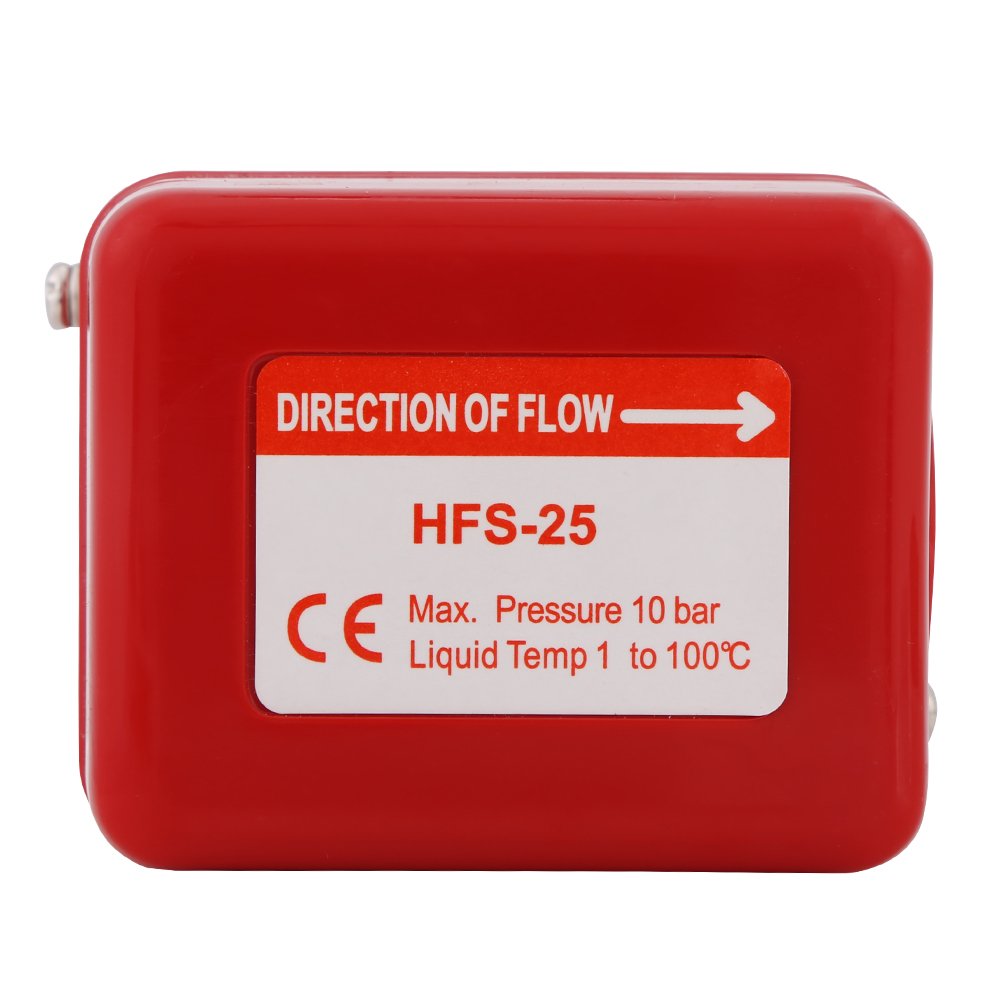

Water Paddle Flow Control Switch, AC250V 10Bar BrassLiquid Water Sensor Controller NPT Thread Connection Automatic Paddle Type Flow Switch Red 1pc
Product details
| Management number | 234083863 | Release Date | 2026/06/27 | List Price | US$8.26 | Model Number | 234083863 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Description: Flow switch is an automatic element that protects and controls flow in the tube where are used in liquid pipes, which can be used on water treatment system, central air conditioning, water cooling unit and other fields. Applicable to gas or liquid that is not corrosive to brass. Features: Flow value controller is adjustable, stable performance. Easy to wire and safe to use. Made of high quality material brass, durable to use. Perfect for water treatment system, central air conditioning, water cooling unit and other fields. Compatible with gas or liquid that is not corrosive to brass. Specification: Material: Brass Voltage: AC250V Type(channel position): direct-acting type Connection method: NPT Thread Application: water treatment system, central air conditioning, water cooling unit and other fields. Applicable substance: gas or liquid that is not corrosive to brass and copper. Shell protection grade: IP54 Output: micro switch SPDT output Contact life: 100,000 times Using substance temperature range: -10-105℃ Working substance: air, water and oil Micro switch current: max. 15A Micro switch voltage: 250V AC/DC Undertaking pressure: max. 15bar Weight: 428g Note: It can not be used in the pipe which temperature drops below freezing point. Package Included: 1 x Water Flow Switch 5 x Paddle
- Flow value controller is adjustable, stable performance.
- Easy to install and safe to use.
- Made of high quality material brass, durable to use.
- Perfect for water treatment system, central air conditioning, water cooling unit and other fields.
- Compatible with gas or liquid that is not corrosive to brass.
| UPC | 753874533296 |
|---|---|
| ASIN | B07R7VL5P9 |
| Color | Red |
| Model | Vikyey710szn9ed |
| Wattage | 3750 watts |
| Terminal | Spdt |
| Brand Name | Vikye |
| Unit Count | 1.0 Count |
| Part Number | Vikyey710szn9ed |
| Switch Type | SPDT |
| Circuit Type | 2-way |
| Contact Type | Normally Closed, Normally Open |
| Control Type | Automatic |
| Manufacturer | Vikye |
| Actuator Type | Automatic |
| Material Type | Brass |
| Mounting Type | Surface Mount |
| Connector Type | Screw |
| Control Method | Touch |
| Operation Mode | Automatic |
| Item Dimensions | 5.12 x 2.56 x 3.07 inches |
| Number of Items | 1 |
| Contact Material | Brass |
| Operating Voltage | 250 Volts |
| Specification Met | Ip54 |
| Compatible Devices | Water treatment systems, central air conditioning units, water cooling units, devices using non-corrosive gases or liquids |
| Number of Positions | 1 |
| Connectivity Protocol | X-10 |
| Upper Temperature Rating | 105 Degrees Celsius |
| International Protection Rating | IP54 |
